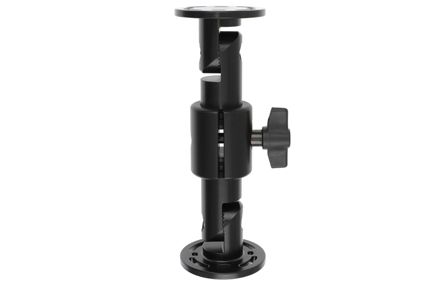

Pedestal Mount 5,5" rotatable L:156mm - small teeth

article number
216162
In stock
€104.95
-
+
Details

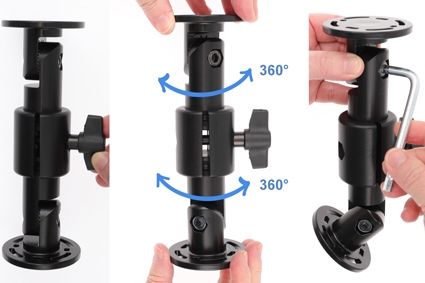

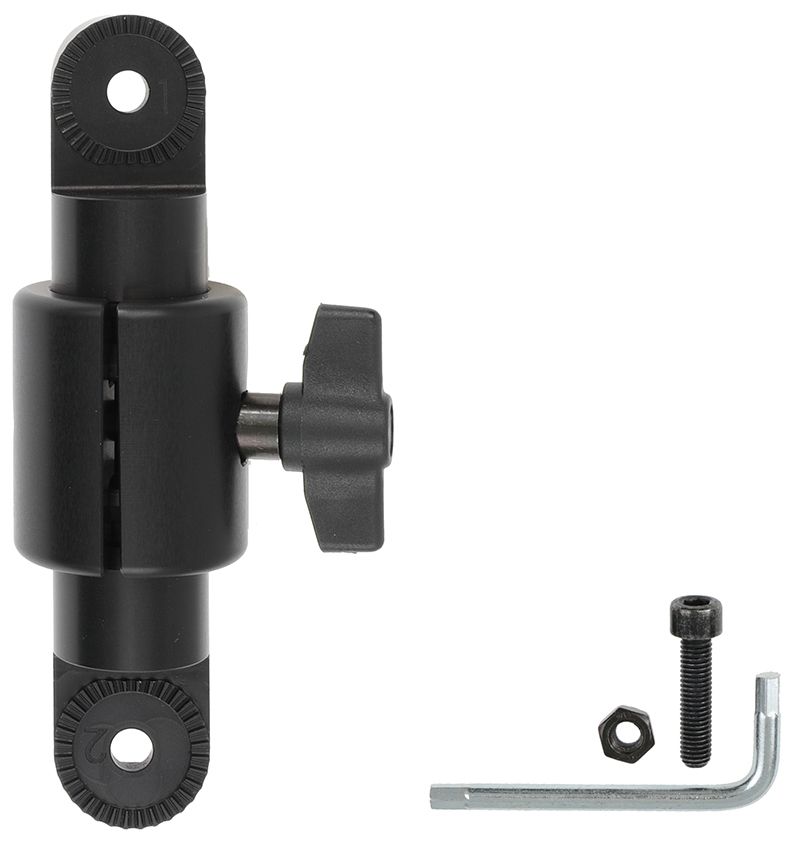

Adjustable Pedestal mount extension part 5,5" rotatable, small teeth. Total length: 156 mm. CC dimension: 152 mm. Includes 1 screw, 1 wingnut. Black. Create your own design by screwing together base/top and extension parts. Easy to adjust in all angles and positions thanks to the adjustable middle part. The angle of the Pedestal Mounts can be changed as needed in steps of 11,25°, up to a maximum of 180° (16 different positions).
More Information
More Information
Accessory brand Brodit
Barcode 7320282161620
Recommended retail price incl. VAT 104.95
Color black
Pedestal length 5,5"
Pedestal angle ° for holder 360°
Pedestal property rotatable 360°, toothing small (16), Pedestal Mount Part
Reviews
Write Your Own Review
You're reviewing:Pedestal Mount 5,5" rotatable L:156mm - small teeth
Compatibility
Instruction

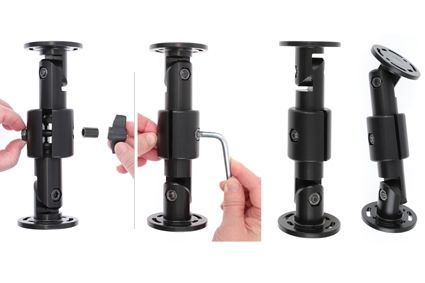

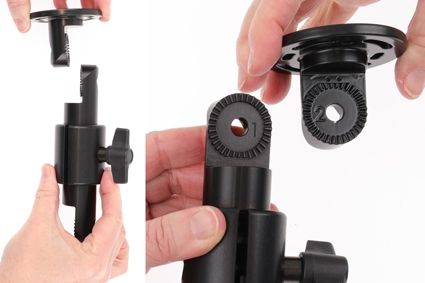

Please read all of the instructions and  look at the pictures before attaching the holder.   1. Install the Pedestal Foot / Top with the enclosed screws, nuts. Pair them 1 to 2 to get a straight attachment.
2. Loosen the wingnuts and adjust the angles of the mount. Tighten the wingnuts and screws so the its locked into the desired position.
3. To replace the Wing Nut: Remove the Wing Nut, insert the supplied bolt into the hole on one part and through the other part of the PM mount, place the nut and tighten it with the key provided.
4. The mount is in place.
