Pedestal Mount 185mm Forklift mount hole fixation M6/M8

article number
216389
In stock
€121.95
-
+
Details
Pedestal mount, small teeth. Total length: 185 mm. Round base with singel hole M6 / M8 and top plate, diameter 64 mm. Multiple holes for radial adjustment. Black. Forklift mount for holeattachment, M6 / M8. Very strong construction that withstands the wear and tear in daily professional use. For a firm installation of handheld communication devices. Keep your device within easy sight and reach for a more efficient, safe and comfortable work day!   Radial AMPS holes for easy attachment of a Pedestal Mount or a device holder, it makes it easy to adjust the installed equipment into the desired angle. Made of metal. Color: black. Made in Sweden.
More Information
More Information
Accessory brand Brodit
Barcode 7320282163891
Recommended retail price incl. VAT 121.95
Color black
Pedestal property Pedestal Mount Top, toothing small (16), Pedestal Mount Part
Type Forklift
Montage standaard AMPS
Reviews
Write Your Own Review
You're reviewing:Pedestal Mount 185mm Forklift mount hole fixation M6/M8
Compatibility
Instruction

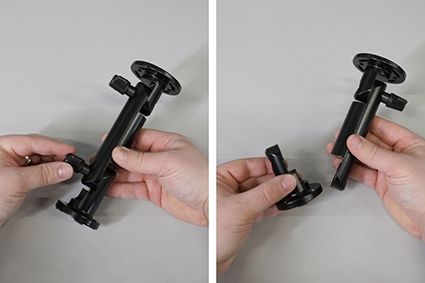

Please read all of the instructions and look at the pictures before attaching the mount.   1. 1. Loosen the wing nut to install the hole mounting bracket.

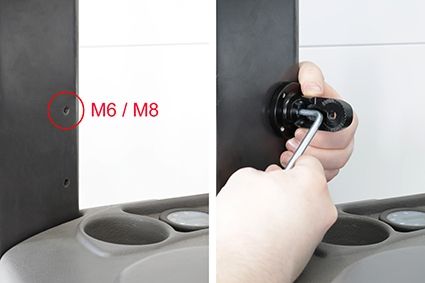

2. Use it pree drilled hole M6 / M8. Place the mount directly over the hole, screw it in place.

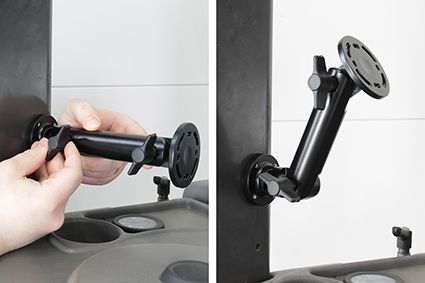

3. Fix the mount by tightening the two smaller screws.

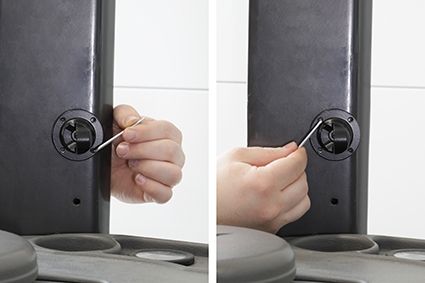

4. Tighten the wingnuts so the its locked into the desired position. The mount is in place.
