m-use wireless set 5" monitor/bracket + uni AHD cam 12v/24v
article number
675103381
In stock
€350.00
* Let op set foto wijjkt af van daadwerkelijk model. Zie aanvullende foto's voor levering producten

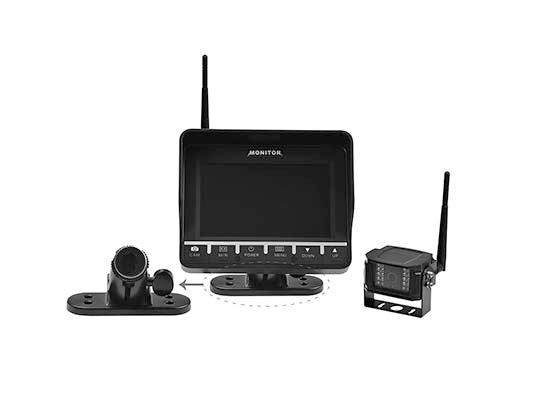

5" digital signal wireless camera system with 2 channel inputs. The system has built-in transmitter and receiver. It is without delay and interference. After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle, which save labor cost and efficiency.
Monitor Specification
.Screen size
5.6’ TFT panel
.Aspect Ratio
4:3 image
. Input
1-channelvideo input
.System
PAL and NTSC auto switching
.Resolution
800 x R.G.B x 480
.Brightness
200cd/m2
. Power supply
12-24V DC
.Operation Temperature
-30℃~+70℃.RH95% Max
Camera Specifications
Image Sensor
1/3 CMOS
TV System
NTSC/PAL
Vibration Rate
10G
Min IIIumination
0.1Lux@(F1.2,AGC ON);0Lux With IR
Electronic Shutter
Auto PAL 1/50s(NTSC 1/60s)~1/100,000s
Signal to Noise ratio Better than 48dB
Focus 2.8mm
F.O.V 120° (D)、95°（H）、70°（V）
BacklightCompensation Auto
Resolution 700TVL
Ir LED 20pcs
Power Supply DC+12~+24V
Operating Temperature -30℃~80℃
IP Rating IP69
| Accessory brand | m-use vision |
|---|---|
| Barcode | 8717091772472 |
| Recommended retail price incl. VAT | 350.00 |
| Camera, Monitor feature | Normal view, AHD series; An AHD camera only works with an AHD screen, an AHD screen can also show CVBS images |
| Camera mounting | on bodywork |
| Camera accessories | Camera Sets |
| Camera video system | PAL - EU 50 Hz 25 fps |
| Camera connector | Wireless |
| Camera lens quality | CMOS |
| Camera viewing angle | 120° |
| Input Voltage | 12/24V geschikt |
| Monitor screen size | 5" |
| Additional product required | Select the desired extension or gradient cable via the related products tab. A monitor completes the installation |
| Product suitable for | AHD series; An AHD camera only works with an AHD screen, an AHD screen can also show CVBS images |
