ProClip Opel Signum 03-08/ Vectra 02-10 Angled mount

article number
853077
In stock
€23.95
-
+
Details
The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
More Information
More Information
Accessory brand Brodit
Barcode 7320288530772
Recommended retail price incl. VAT 29.95
Type ProClip left hand
Position Right side of dashboard
Color black
Montage standaard AMPS sized, no holes
Product suitable for Proclip
Reviews
Write Your Own Review
You're reviewing:ProClip Opel Signum 03-08/ Vectra 02-10 Angled mount
Compatibility
Related products
Instruction
Attention! Read all instructions before attaching the ProClip.
This ProClip consists of two parts.
Part 1. Attaching part (the smallest part)
Part
2. ProClip face plate

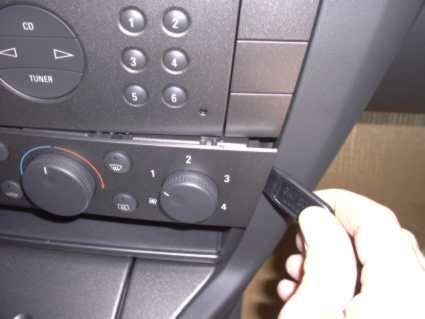

1. Remove the cover plate in the control panel by using the enclosed gap opener.

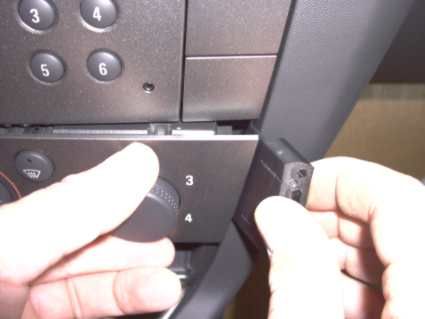

2. Hook Part 1 behind the fram surrounding the control panel. Press the cover plate back into place.

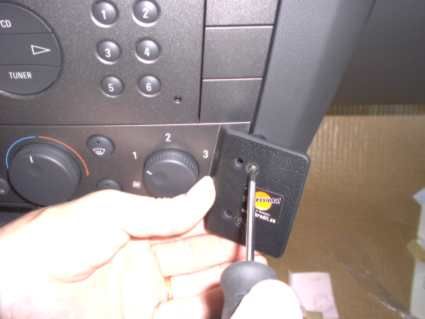

3. Open up the predrilled holes in Part 2 with a screwdriver (Philips). Peel off the cover of the adhesive tape on Part 2. Place Part 2 over Part 1 so the holes match and so the adhesive tape is to the left. Screw Part 2 onto Part 1 with the enclosed screws. Note! Screw the screws straight into Part 1, in the same angle as Part 1.

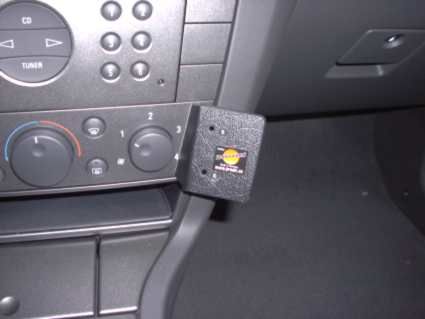

4. The ProClip is in place.
