ProClip Ford Explorer 02-05 angled
ProClip Ford Explorer 02-05 angled
ProClip Ford Explorer 02-05 angled
ProClip Ford Explorer 02-05 angled
ProClip Ford Explorer 02-05 angled

ProClip Ford Explorer 02-05 angled

article number
852957
In stock
Be the first to review this product
€23.95
-
+
Add to order list Add to Compare
Details
The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
More Information
More Information
Accessory brand Brodit
Barcode 7320288529578
Recommended retail price incl. VAT 28.95
Type ProClip left hand
Position Right side of dashboard
Color black
Montage standaard AMPS sized, no holes
Product suitable for Proclip
Reviews
Write Your Own Review
You're reviewing:ProClip Ford Explorer 02-05 angled
Compatibility
Related products
Related Products
Instruction
Attention! Read all instructions before attaching the ProClip
Part 1: The attaching part (the smallest part)
Part 2: The ProClip faceplate

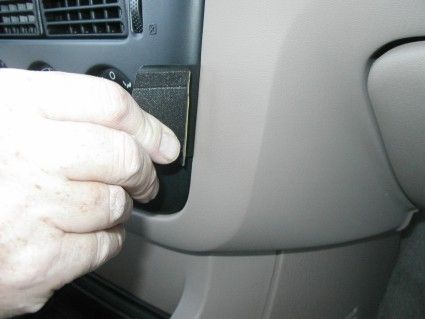

1. Peel off the cover of the adhesive tape on Part 1 and place the thin angled edge into the gap between the center dashboard panel frame (next to the climate control) and the padded dashboard. Press the angled edge firmly into the gap and bend Part 1 to the right until you hear/feel it snaps into place.

2. Then press hard on Part 1, towards the dashboard, until you hear/feel it snaps behind the panel frame. (This could sound like a second snap in the panel depending of how hard you pressed the first time)

3. Press a screwdriver (Philips) firmly through the predrilled holes in Part 2 to open them up. Peel off the cover of the adhesive tape on Part 2. Place Part 2 onto Part 1 so the holes match and the adhesive tape on Part 2 is on the left side attaching to the center dashboard panel. Screw Part 2 onto Part 1 using the enclosed screws. NOTE: DON'T SCREW THE SCREWS INTO PART1 IN AN ANGLED POSITION BASED ON THE ANGLE OF PART 2, BUT STRAIGHT INTO PART 1.

4. The ProClip is in place.
