Brodit MUC charging module Zebra TC73/TC78 fixed/pogo/2A

article number
216305
Not in stock
€110.95
-
+
Details

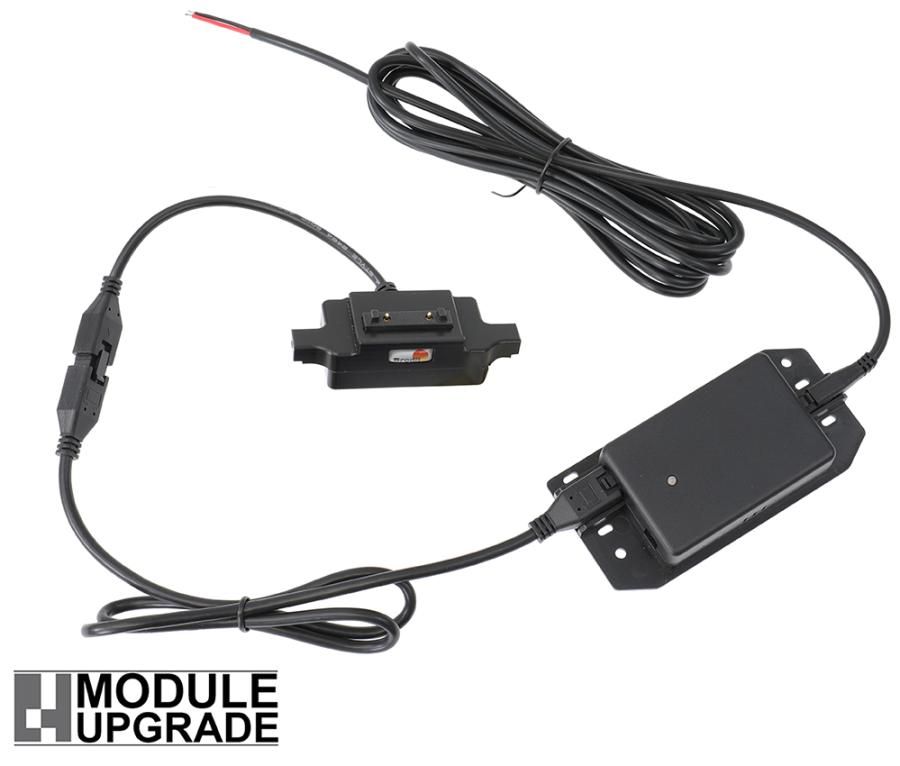

Charging module for Module Upgrade holders. For fixed installation, 2A charging. 12/24V. With Easy-switching system. Charging via pogo pins. Charging module for fixed installation, easy-switching system. Connect your device to a charging feature while driving, and you will always have a freshly charged battery! This product is compatible with Module Upgrade holders for this device, so you can upgrade such a holder with charging if desired.   The charging is to be connected inside the dashboard. It provides a discreet and neat installation without any cables hanging over the interior. Safe and convenient! 12/24 Volt. The product is E-approved. Connect the power cable with a 2A fuse. 2A charger. Charging via pogo pins. Professional installation recommended.   Easy-switching system: The easy-switching system enables you to upgrade the holder only, and keep the installed cables. This saves you a lot of time and money! When upgrading to a new device, you do not need to make a full installation. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. Same goes for maintenance in case of warranty or damage. The switch is done in a few seconds.   For use with the following products: Item no. 711310 Passive holder with tilt swivel. Fits for device with or without handstrap. Module Upgrade Cradle. Item no. 739310 Holder with key-lock. Fits for device with or without handstrap. Module Upgrade Cradle. 2 keys included.
More Information
More Information
Accessory brand Brodit
Barcode 7320282163051
Recommended retail price incl. VAT 110.95
Device with or without cover nee
Module Upgrade Cradle system (MUC) MUC Module
holder characteristic Toestelspecifiek, MUC add on
Houder kenmerk waardes Module add on
Cable / Qi / charger type / connnector piggy tail (Easy Switching)
Toestel connector Pogo / Pins
Input Voltage 12/24V geschikt
Voltage (output) 4.75 - 5.25V
Max Amperage 2,0 Amp
Montage standaard AMPS
Device holder lockable? no
Color black
Reviews
Write Your Own Review
You're reviewing:Brodit MUC charging module Zebra TC73/TC78 fixed/pogo/2A
Compatibility
Related products
Instruction

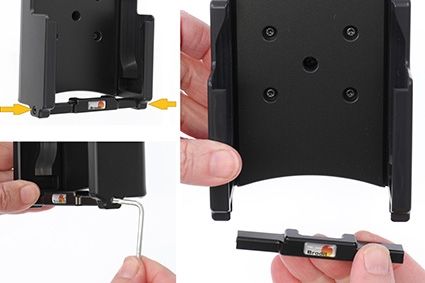

Please read all of the instructions and  look at the pictures before attaching the holder.   1. Loosen the screws on the side of the holder to remove the bottom support.

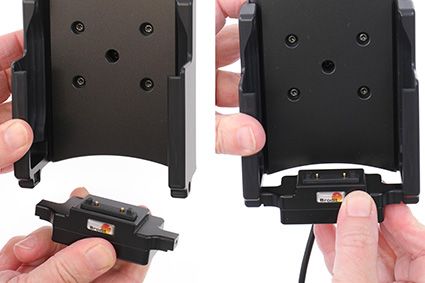

2. Place the charging module as shown so that the holes fit.

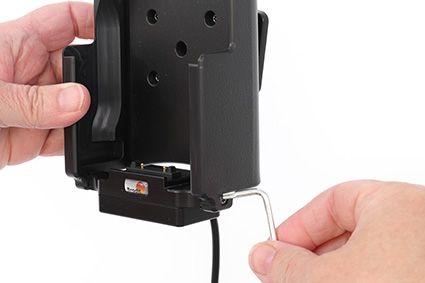

3. Screw on the charging module.
4. The Charging module is in place.
