Brodit adjustable holder holder 70-83/2-10mm wxd

article number
711042
In stock
€27.95
-
+
Details
Keep your phone in a passive holder on the road and you will always have it within easy sight and reach. Safe, comfortable and convenient!

The adjustable holder fits for devices with and without skin with the following dimensions: Width: 70-83 mm, Thickness: 2-10 mm. Adjustable holders come in various sizes. Measure your device and compare with the holder specifications in order to make sure you have chosen the correct product (if you are using a skin: measure the device with the skin in place).

Before using the holder you set the holder's width so it suits your device, then your phone is held firmly in place in an upright position for maximum cellular reception. The holder has a neat and discreet design which blends well with the vehicle's interior. You can connect e.g. a portable handsfree or a charging cable to the device when it is in place in the holder.

The holder is made of black ABS plastic. It is easy to put the device into the holder, and just as easy to take it with you when leaving the vehicle. The holder is equipped with a tilt swivel so you can adjust the angle of your device in order to avoid light reflection on the screen. You can tilt the holder 22° in each direction. Attach onto ProClip Mounting Platform.
More Information
More Information
Accessory brand Brodit
Barcode 7320287110425
Recommended retail price incl. VAT 29.95
Device holder type Device specific
Connection Passive
Device holder features Universal and adjustable
Houder kenmerk Verstelbaar, Universeel
Device with or without cover ja
Extra Strong No
Device holder width / height 70-83 mm
Toestel houder diepte / dikte 2-10 mm
Input Voltage does not apply
Voltage (output) does not apply
Device holder lockable? no
Montage standaard AMPS
Cable / charger type/ connnector passive
Color black
Productinfo Brodit houder
Product installation Mount the holder on a ProClip in your vehicle. A detailed installation manual is included in the product packaging
Product suitable for Brodit houder
Exchange period 30 days
Repair period 30 days
Return period 30 days
Reviews
Write Your Own Review
You're reviewing:Brodit adjustable holder holder 70-83/2-10mm wxd
Compatibility
Instruction
Please read all of the instructions and look at the pictures before attaching the holder.

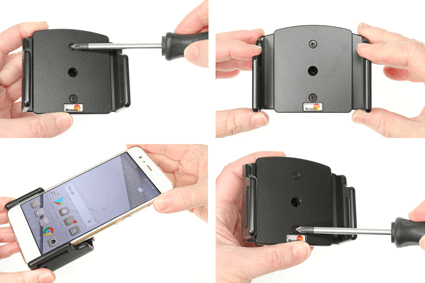

1. To adjust the holder for your device: Loosen the screws on the front side of the holder, so the sides of the holders can be adjusted. Place the device in the holder and press the sides together so the device is firmly in place. Tighten the screws on the front side of the holder.

2.To install the holder: Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.

3. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Screw a few turns on the screw, just so the thread starts to pull. Pull the holder toward you and hold it slightly tensed, in the same time tighten the screw so the holder is pulled toward the tilt swivel. Tighten the screw firm at first, then loosen it a bit so the holder is firmly in place, but still can be adjusted.

4. The holder is in place.
