Brodit holder/charger Samsung Tab Active 3/Active 5 cig. PIN

article number
712386
In stock
€91.95
-
+
Details

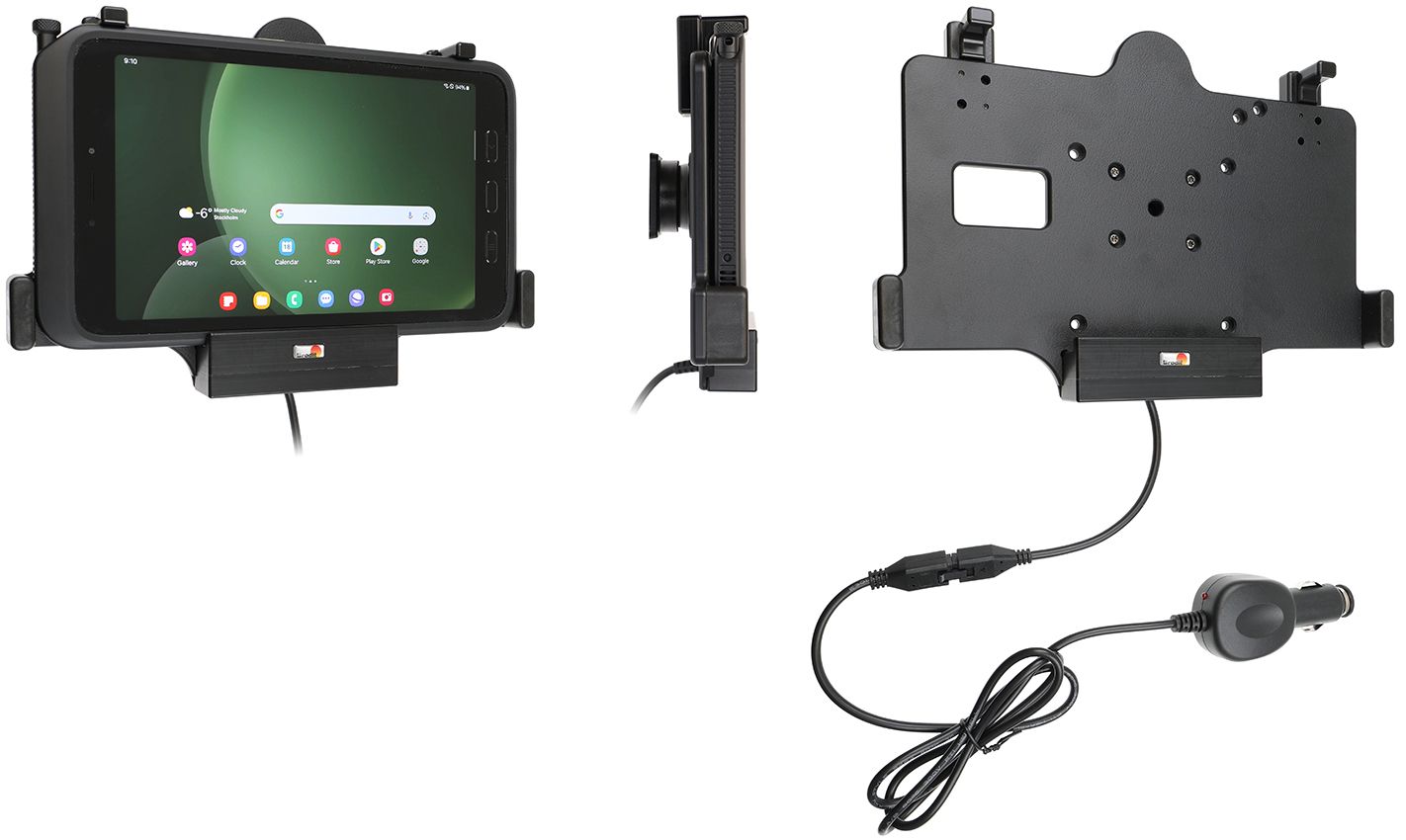

Fits for devices with original skin. With tilt swivel. With Easy-switching system. With AMPS, VESA 75 holes. Use an active holder for your Galaxy Tab Active while driving and you will always have a freshly charged battery! The holder provides a neat and comfortable installation - safe and convenient. The holder is equipped with a cig-plug for connection to the vehicle's 12/24 Volt socket. 3A charging. Charging via pogo plug.   The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden.   Easy-switching system: The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.   Choose installation placement with care, devices must not be placed in positions where they may block the view or important controls. The cradle should only be attached onto a suitable place. Installations always take place at the customer's own discretion and responsibility.
More Information
More Information
Accessory brand Brodit
Barcode 7320287123869
Recommended retail price incl. VAT 91.95
Device holder type Tablet Navigation holder
Connection Cig.plug
Professional holder Charging via pogo pins, Vesa 75
Device with or without cover ja
Extra Strong No
Cable / charger type/ connnector piggy tail (Easy Switching)
Device holder features Device specific
Houder kenmerk Toestelspecifiek
Toestel connector Pogo Pins
Color black
Input Voltage 12/24V geschikt
Voltage (output) 4.6 - 5.3V (Pogo?)
Device holder lockable? no
Montage standaard AMPS, VESA
Easy switching system Ja
Productinfo Brodit houder
Exchange period 30 days
Repair period 30 days
Return period 30 days
Reviews
Write Your Own Review
You're reviewing:Brodit holder/charger Samsung Tab Active 3/Active 5 cig. PIN
Compatibility
Related products
Instruction

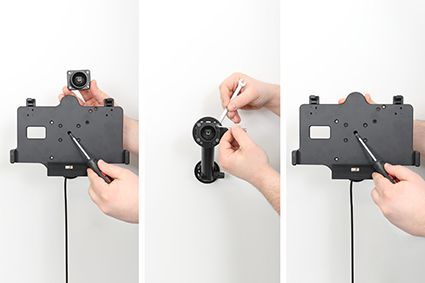

Please read all of the instructions and  look at the pictures before attaching the holder.   1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted.

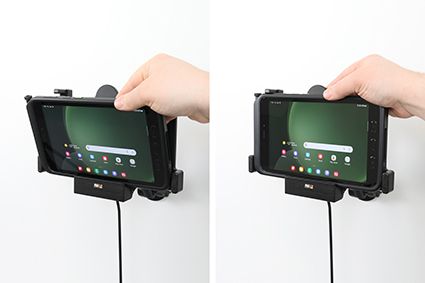

2. To place the device in the holder: Place the lower part of the device in the holder, then flip/press the upper part forwards so it snaps into place in the holder.

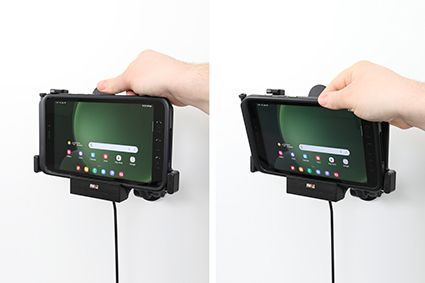

3. To remove the device from the holder: Press upwards on the upper part of the holder, in the same time pull the upper part of the device out from the holder and then lift the device up and out from the holder.

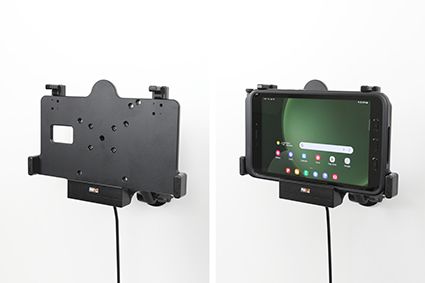

4. The holder is in place.
