Brodit fixed installation holder Apple iPad Mini 6 lock

article number
736278
Not in stock
€137.95
-
+
Details

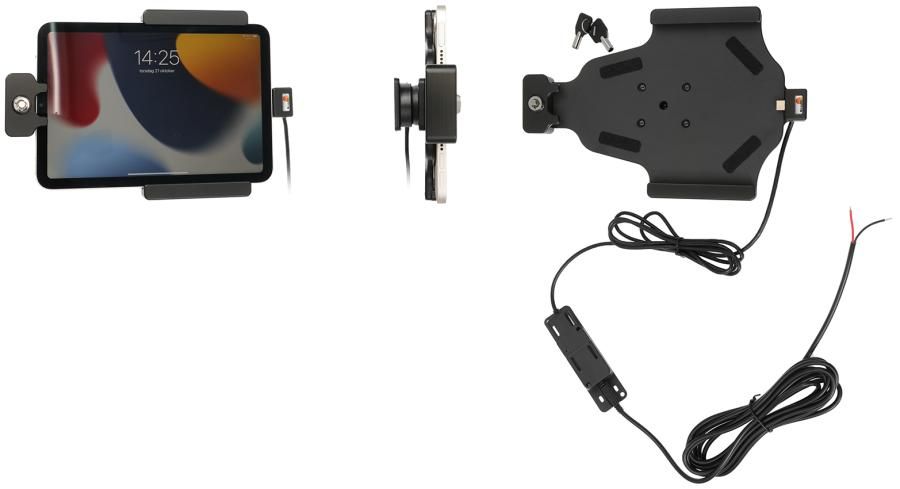

Active holder for fixed installation. With USB-cable. 2 USB ports: QC 3.0A + 2.4A. 12/24 Volt. 2A charging. With tilt swivel. 2 keys included. This holder is to be used when you will secure your device and still have it easy accessable. Perfect for use in stores, at exhibitions and any place where you want to use your device without having it easy removable. In order to remove the tablet from the holder you need the key or a certain amount of violence is required. The holder includes a lock and two keys.   For fixed installation. The holder is to be connected inside the dashboard, providing an elegant installation without any cables hanging over the interior. The charging box has two USB ports: QC 3.0A + 2.4A. Connect the power cable with a 2A fuse. Professional installation recommended.   The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade ABS/Acetal plastic. Color: black. Made in Sweden.    An installation of a tablet onto a vehicle’s dashboard is always done on the customer’s own responsibility. Brodit recommends to use tablets on a Pedestal mount or a Brodit headrest mount.
More Information
More Information
Accessory brand Brodit
Barcode 7320287362787
Recommended retail price incl. VAT 137.95
holder characteristic Toestelspecifiek
Toestel connector usbC
Device with or without cover nee
Cable / Qi / charger type / connnector Molex, fixed install
Input Voltage 12/24V geschikt
Voltage (output) QC - QuickCharge
Max Amperage 3,0 Amp
Montage standaard AMPS
Device holder lockable? yes with a lock
Color black
Productinfo Brodit houder
Product installation Mount the holder on a ProClip in your vehicle. A detailed installation manual is included in the product packaging
Product suitable for Brodit houder
Reviews
Write Your Own Review
You're reviewing:Brodit fixed installation holder Apple iPad Mini 6 lock
Compatibility
Related products
Instruction

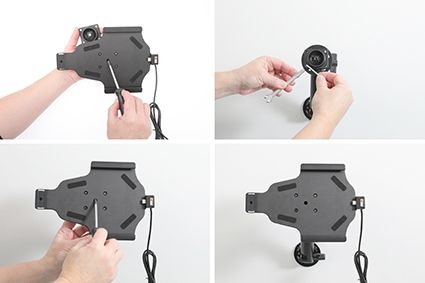

Please read all of the instructions and look at the pictures before attaching the holder. 1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Screw the holder onto the attaching plate. Tighten the screw so the holder is firmly in place, but still can be adjusted.

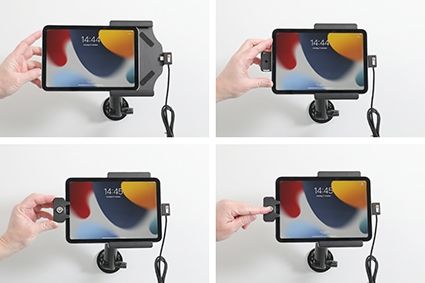

2. Slide the device sideways carefully into the holder. Press the lock sideways onto the left part of the holder. Press the button to lock.

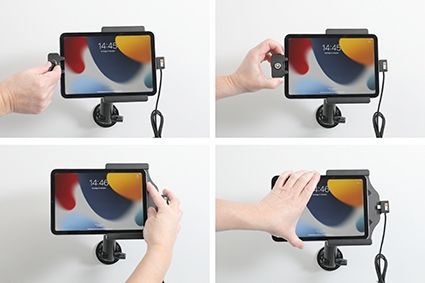

3. Use the enclosed key to open the lock. Remove the lock by slidning it sideways away from the holder. Slide the device sideways out of the holder.
4. The holder is in place. Switch between portrait and landscape mode by turning the holder into desired position.
