Brodit FIH Zebra ET51 8.3" (scanner frame) with DC con.&Lock

article number
216109
Not in stock
€381.95
-
+
Details

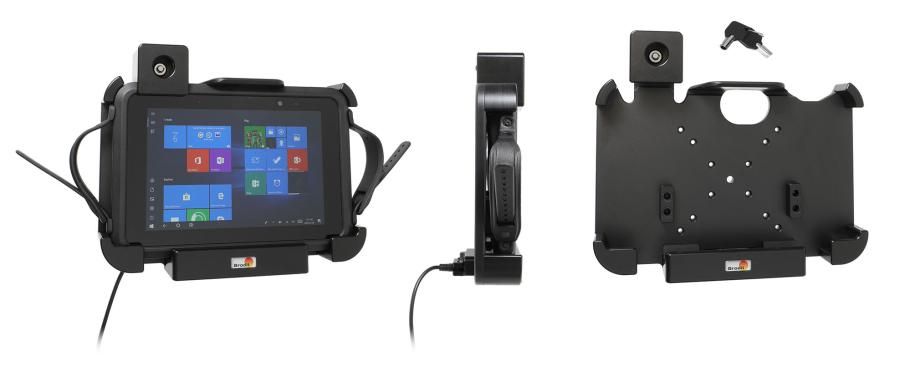

Extra strength holder. For device with Integrated Scanner. With DC power connector (power supply NOT included). With lock, 2 keys included. With AMPS, Vesa 75/100 holes.
More Information
More Information
Accessory brand Brodit
Barcode 7320282161095
Recommended retail price incl. VAT 381.95
Device with or without cover ja
holder characteristic Toestelspecifiek
Houder kenmerk waardes scanner add on, DC powerconnector (Power supply not included)
Cable / Qi / charger type / connnector passive
Input Voltage does not apply
Voltage (output) does not apply
Max Amperage not applicable
Montage standaard AMPS, VESA
Device holder lockable? yes with a lock
Color black
Productinfo Brodit houder
Product installation Mount the holder on a ProClip in your vehicle. A detailed installation manual is included in the product packaging
Product suitable for Brodit houder
Reviews
Write Your Own Review
You're reviewing:Brodit FIH Zebra ET51 8.3" (scanner frame) with DC con.&Lock
Compatibility
Related products
Instruction

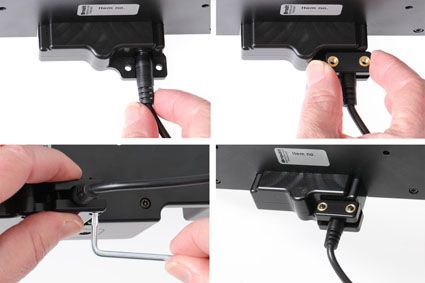

Please read all of the instructions and look at the pictures before attaching the holder. 1. To attach the cable: Attach the cable to the device. Place the lid over the cable and screw it into place with the enclosed screws.

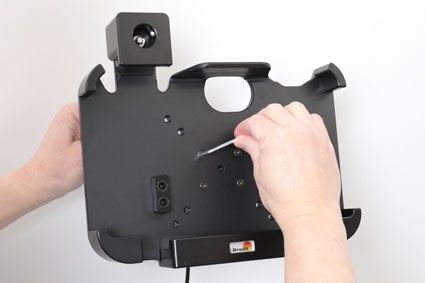

2. To attach the holder: Place the holder onto the desired position and screw it into place with the enclosed screws.

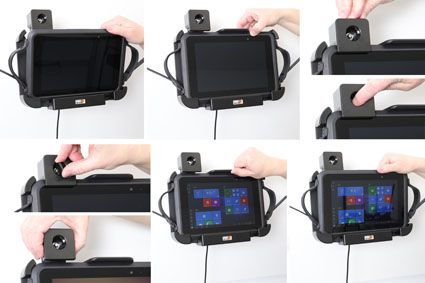

3. To place the device in the holder: Place the lower part of the device in the holder. Flip/press the upper part of the device forward so it snaps into place in the holder. Press the locking block downward. Press the button to lock. To remove the device from the holder: Open the lock with the key. Pull the locking block upward. Press upwards on the upper part of the holder, at the same time pull the upper part of the device out from the holder. Lift the device up and out from the holder.
4. The holder is in place.
