Brodit holder fixed install. Honeywell CT50/CT60 -2A

article number
513851
Not in stock
€111.95
-
+
Details

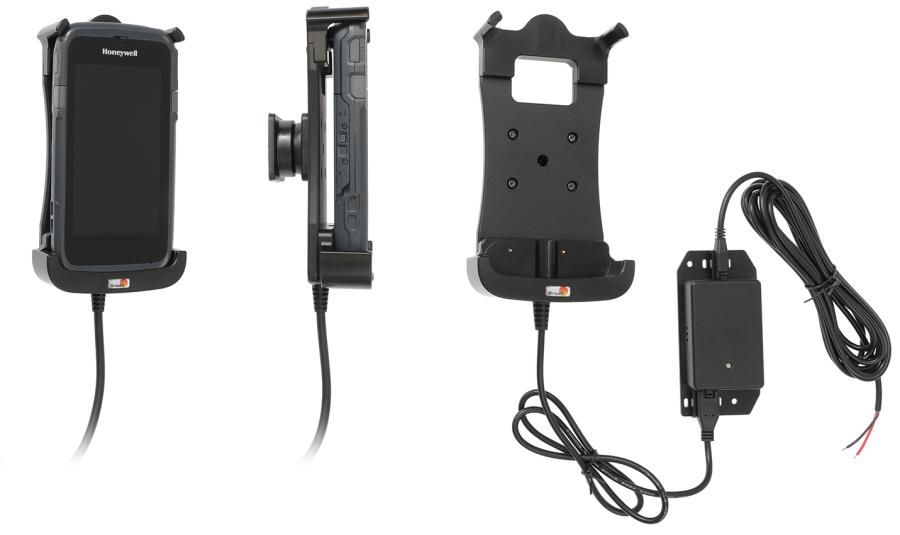

With tilt swivel, with Molex adapter system. 2A charger. An active holder which is to be connected inside the dashboard, this gives a discreet, neat installation without cables hanging over the interior! You can choose to use the holder as an active holder for charging of your device only, or to connect an adapter to the Molex connector for additional features. Then you can use the holder also for power supply of a GPS receiver or other own solutions (can not be used for data communication or audio connection). 12/24 Volt. The product is E-approved. Connect the power cable with a 2 A fuse. 2 A charger.  Professional installation recommended. The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Attach onto a Pedestal Mount or an ProClip mounting platform.
More Information
More Information
Accessory brand Brodit
Barcode 7320285138513
Recommended retail price incl. VAT 111.95
Device holder type PDA holder
Connection Fixed installation
Device holder features Device specific
Color black
Color Black
Voltage 12/24V geschikt
Device holder lockable? no
Productinfo Brodit houder
Product installation Mount the holder on a ProClip in your vehicle. A detailed installation manual is included in the product packaging
Product suitable for Brodit houder
Reviews
Write Your Own Review
You're reviewing:Brodit holder fixed install. Honeywell CT50/CT60 -2A
Compatibility
Instruction

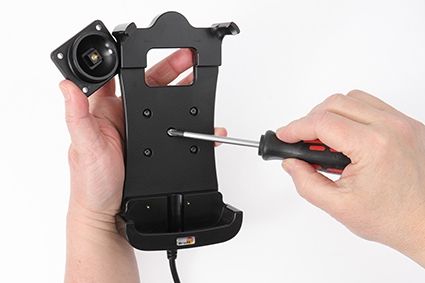

Please read all of the instructions and look at the pictures before attaching the holder. 1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.

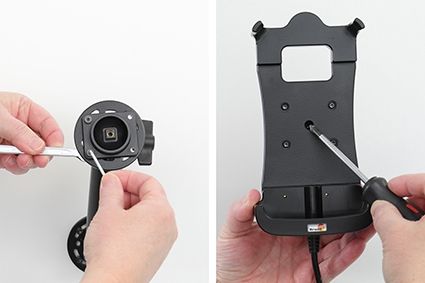

2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw so the holder is firmly in place, but still can be adjusted.

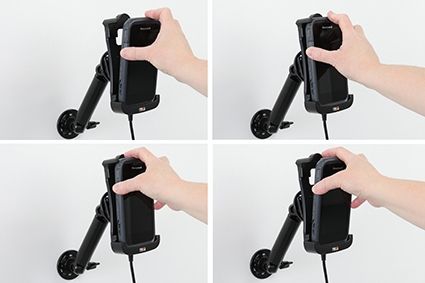

3. To place the device in the holder: Place the lower part of the device in the bottom of the holder. Flip/Press the top of the device forward into place in the holder. To remove the device from the holder: Place your index finger on the upper part of the holder and push at the same time as you pull the upper part of the device out from the holder. When the device is set free, lift it upward out of the holder.

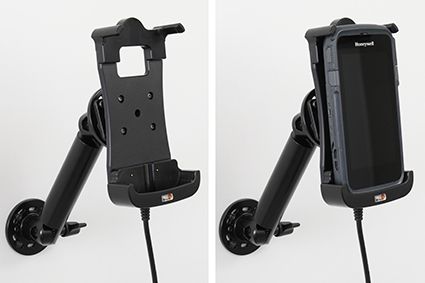

4. The holder is in place.
