Brodit fixed install. holderApple iPad Mini 2/ 3 (ball-lock)

article number
547584
Not in stock
€130.95
-
+
Details
This holder is to be used when you want to have your iPad Mini extra securely in place and still have it easy accessable. The holder is crashtested and approved for use on Brodit's headrest mount.

The active holder is to be connected inside the dashboard. It provides a discreet and neat installation without any cables hanging over the interior. Safe and convenient!

12 Volt. The product is E-approved. Connect the power cable with a 2 A fuse. 2 A charger. Professional installation recommended.

The holder is made of extra strong plastic and is equipped with a spring stud locking device. The holder is mounted onto a tilt swivel. This mean that you can adjust the angle in order to avoid light reflection on the screen. You can easily switch between portrait and landscape mode by turning the holder into desired position.

Tablets should not be installed onto a car's dashboard if blocking the view or key controls. ProClip is designed for use with smaller devices like smartphones. If you want to place a tablet onto a dashboard, each combination of tablet-car must be examined in detail by yourself in order to determine if such an installation is possible in the specific case. Brodit will not give any recommendations for such installations. An installation of a tablet onto a vehicle's dashboard is always done on the customer's own responsibility. Brodit recommends using tablets on the car's headrest, installed onto a Brodit headrest mount.
More Information
More Information
Accessory brand Brodit
Barcode 7320285475847
Recommended retail price incl. VAT 137.95
holder characteristic Toestelspecifiek
Toestel connector lightning
Device with or without cover nee
Cable / charger type / connnector Molex, fixed install
Input Voltage 12/24V geschikt
Voltage (output) QC - QuickCharge
Max Amperage 3,0 Amp
Montage standaard AMPS
Device holder lockable? ja spring stud locking
Color black
Productinfo Brodit houder
Product installation Mount the holder on a ProClip in your vehicle. A detailed installation manual is included in the product packaging
Product suitable for Brodit houder
Exchange period 30 days
Repair period 30 days
Return period 30 days
Reviews
Write Your Own Review
You're reviewing:Brodit fixed install. holderApple iPad Mini 2/ 3 (ball-lock)
Compatibility
Related products
Instruction
Please read all of the instructions and  look at the pictures before attaching the holder. Connect to a 2 A fuse holder and fuse inline with the Red wire close to the power source. Route the cable from the holder into the vehicle dashboard and secure the charger unit in place with the adhesive tape provided. Ensure the charger unit is securely mounted behind the dashboard in a well ventilated area that does not get hot! If you are connecting a GPS/Data device to the holder please ensure the charger unit is located in a position within easy reach of any GPS or charging adapters. Route the power cable from the charger unit to the power supply source in the vehicle and connect as follows: 1. Connect the White wire to a Negative Ground connection of the vehicle or the vehicle chassis.

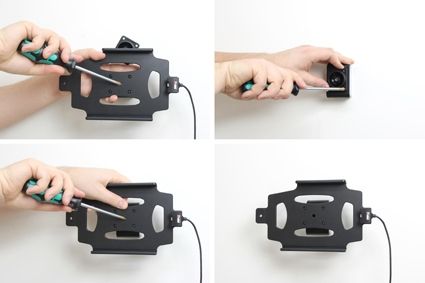

2. Connect the Red wire to a 12/24 Volt power supply in the vehicle that is controlled by the ignition switch of the vehicle. Mount holder: 1. Loosen the screw in the center of the holder and remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the tilt swivel. Screw the holder onto the attaching plate. Tighten the screw so the holder is firmly in place, but still can be adjusted. 2. Slide the device sideways carefully into the holder until you feel that it is properly attached to the connector. Press the spring stud locking device sideways onto the left part of the holder.
3. Slide the spring stud locking device sideways away and out of the holder.
4. The holder is in place. Switch between portrait and landscape mode by turning the holder into desired position.
