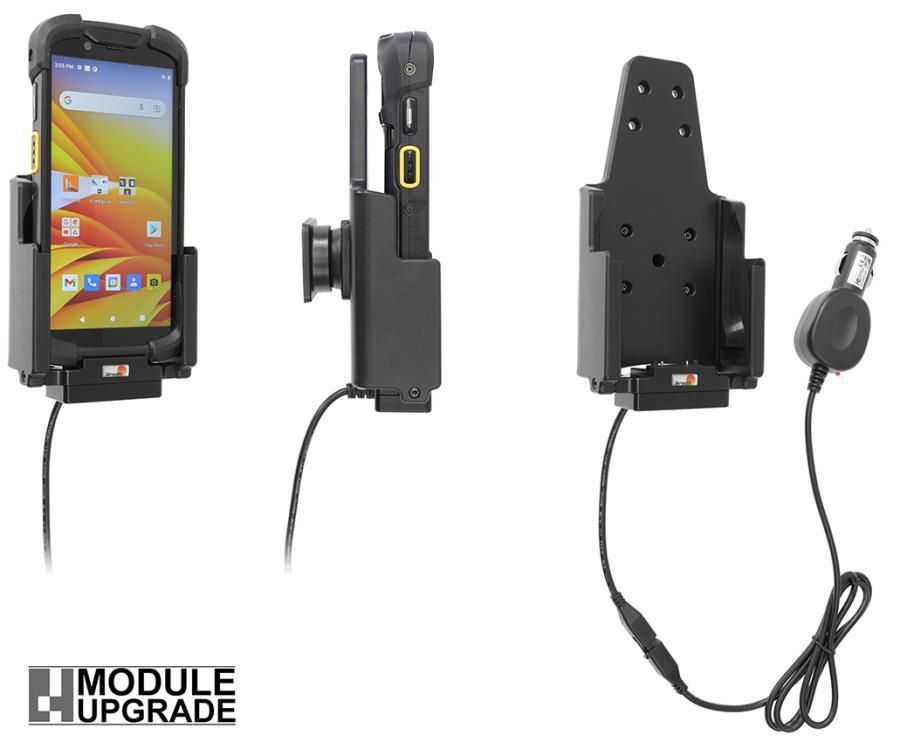

Brodit Active holder Zebra TC73/TC78 cig.plug

article number
712310
In stock
€128.95
-
+
Details

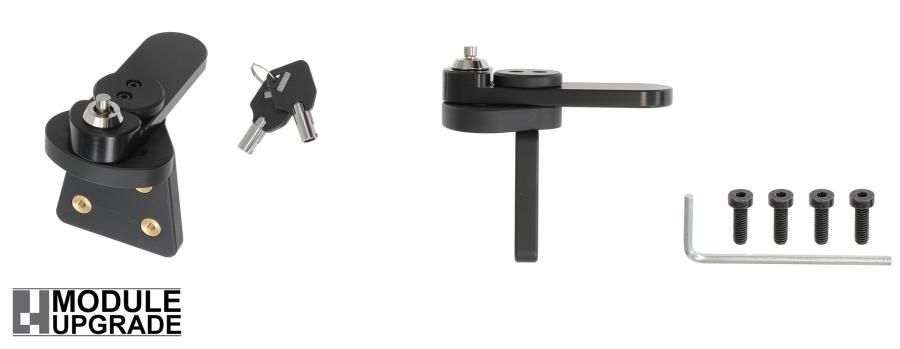

With tilt swivel. 3A charging. 12/24V. With Easy-switching system. Charging via pogo pins. Fits for device with or without handstrap. Module Upgrade Cradle. The active holder charges your battery when it is in the holder. The charging device connects to the unit automatically when you put the unit in the holder. The holder is attached onto a tilt swivel and can be adjusted in order to avoid light reflection. Connects to the vehicle's cigarette lighter socket, 12/24 Volt.   Easy-switching system: The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds. This is a Module Upgrade Cradle, this means that you can upgrade or replace features by using some of the following modules: Item no. 216303 Key lock with two keys. The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Attach onto a Pedestal Mount or an ProClip mounting platform.
More Information
More Information
Accessory brand Brodit
Barcode 7320287123104
Recommended retail price incl. VAT 128.95
Device with or without cover nee
Module Upgrade Cradle system (MUC) MUC Cradle
holder characteristic Toestelspecifiek, MUC Cradle
Houder kenmerk waardes handstrap add on, Module add on
Cable / Qi / charger type / connnector Molex, sig plug, piggy tail (Easy Switching)
Toestel connector Pogo / Pins
Input Voltage 12/24V geschikt
Voltage (output) 4.6 - 5.3V
Max Amperage 3,0 Amp
Montage standaard AMPS
Device holder lockable? no
Color black
Reviews
Write Your Own Review
You're reviewing:Brodit Active holder Zebra TC73/TC78 cig.plug
Compatibility
Related products
Instruction

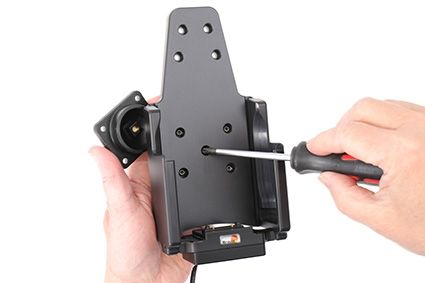

Please read all of the instructions and  look at the pictures before attaching the holder.   1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.

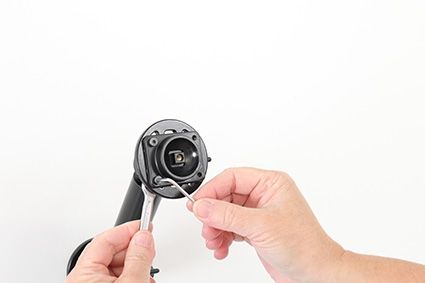

2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.

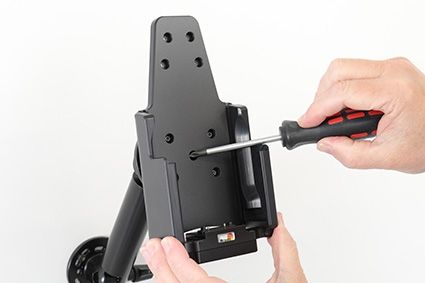

3. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel and screw it into place. Tighten the screw firm at first, then loosen it a bit so the holder is firmly in place, but still can be adjusted.

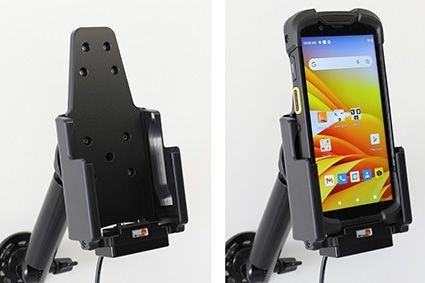

4. The holder is in place.
