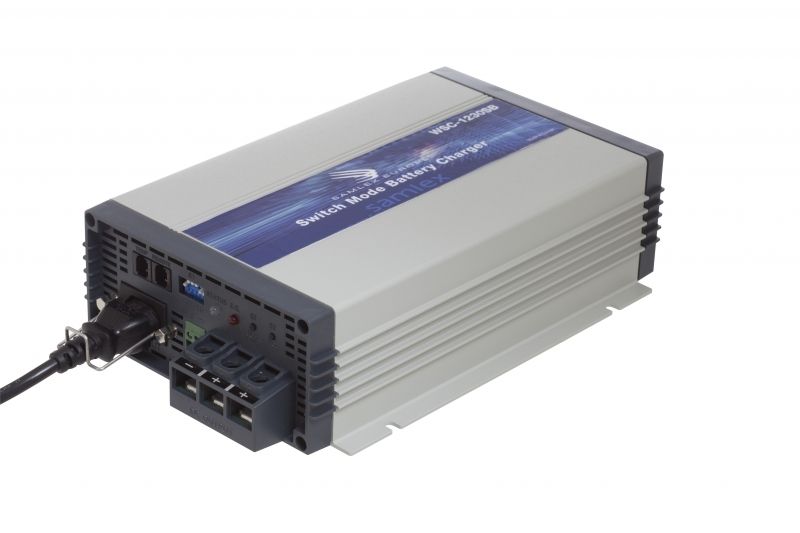

Battery Chargers 4 stage 30 Amps 13.8 - 14.8 VDC
article number
30240205
Not in stock
€320.50
This advanced fully automatic 4-stage 30 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell), LI-Ion from a 115/230 V, 50/60 Hz AC source. A DIP switch setting can be used to convert to a two stage algorithm, in order to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload and short circuit protection. The unit allows charging of up to 2 separate battery banks and a special starter battery output as extra.
| Input Voltage | 100-240 VAC |
| Output Voltage | 14,8-13,5 VDC, 13,8Vdc for SB |
| Dimensions | 265 x 171 x 70 mm |
| Output | 30 Amps, 2 Amps for SB |
| Fuse Rating | n/a |
| Weight | 1,6 Kgs |
Product benefits
- Wide input range 100-240Vac / 50/60Hz
- Charger/ Power supply function
- Power factor correction 0.97
- Half power mode function
- Fan speed controlled
- Slim line design
- Light Weight
- High Efficiency >90%
- Extra starterbattery output 2 Amps@13,8Vdc
| Accessory brand | Samlex |
|---|---|
| Barcode | 8718013573153 |
| Recommended retail price incl. VAT | 320.50 |
| Inverter / Charger / Guard | Battery Charger |
| Inverter Voltage | 230 V > 12 V |
