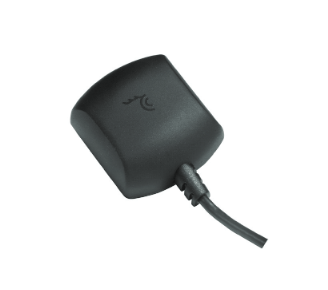

Antenne GNSS 9 M/SMAm/3.0
article number
24602439006
In stock
€22.37
Antenne GNSS 9 M/SMAm/3.0
Dimensions 38 mm x 34 mm x 15.5 mm
Weight 70 g
Temperature range Operations: -40°C – +85°C
Storage: -40°C – +85°C
Protection class IP6k7 (acc. ISO 20653)
Cable type RG 174
GNSS
Frequency range GPS: 1.57542 GHz ± 1.023 MHz (L1-band))
GLONASS: 1602.0 - 1614.94 MHz
Impedance 50 Ohm
VSWR < 1.5
Polarization RHCP
Gain typ. 2 dBic* at 90° Elevation
Amplification typ. 27 dB ± 1 dB
Noise figure typ. 1.4 dB
Voltage supply 2.7 V - 5.5 VDC remote fed by GLONASS/GPS
receiver through signal cable
Current consumption ≤ 13 mA @ 5 V ± 0.5 V
602-439-006 GNSS 9 M/ SMA male / 3.0 meter / adhesive 3000 +30 mm
SMAm straight
Double side sticky pad
Accessory brand | Hirschmann |
---|---|
Barcode | 4046666007829 |
Recommended retail price incl. VAT | 22.37 |
Antenna range | Antenna |
antenna installation | magnet |
Network / Antenna Frequency | GPS 1575.42 Mhz, Glonass 1592 - 1615 MHz |
Connectortype A (M/F) | SMA Male |
Color | Black |
