Brodit houder/lader Sam.Gal.Tab Active Pro fixed install.

Brodit houder/lader Sam.Gal.Tab Active Pro fixed install.

Brodit

713148

Availability: Out of stock

Brodit houder/lader Sam.Gal.Tab Active Pro fixed install.
Incl. Tax: €126.95 €104.92 Excl. Tax:
Brodit houder/lader Sam.Gal.Tab Active Pro fixed install.

Fits for devices with original skin. With tilt swivel.

Use an active holder for your Galaxy Tab Active 2 while driving and you will always have a freshly charged battery! The active holder is to be connected inside the dashboard. It provides a discreet and neat installation without any cables hanging over the interior. Safe and convenient! 12/24 Volt. The product is E-approved. Connect the power cable with a 2 A fuse. 2 A charger. Charging via pogo plug. Professional installation recommended.



The holder is mounted onto a tilt swivel. This mean that you can adjust the angle in order to avoid light reflection on the screen. You can easily switch between portrait and landscape mode by turning the holder into desired position. It is easy to put the unit into place in the holder, and to take it with you when leaving the car.



Easy-switching system:

The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.



Tablets (Surfpads) should not be installed onto a car’s dashboard if they block the view or block key controls. ProClip (Brodit’s vehicle mounting bracket) is designed for installation of smaller devices like mobile phones and GPS devices, ProClip is not designed for large devices like tablets. In some vehicles the ProClip has an extra firm fit and can then be used also for installation of a tablet. If you want to place a tablet onto the car’s dashboard, each combination of tablet-car must be examined in detail by you in order to determine if such an installation is possible in the specific case. Consideration should be given to the position and how firmly the ProClip is in place, as well as the size of the tablet you wish to use. Brodit will not give any recommendations for such installations.



An installation of a tablet onto a vehicle’s dashboard is always done on the customer’s own responsibility. Brodit recommends to use tablets on the car’s headrest, installed onto a Brodit headrest mount.

Charging specification:

Input voltage: DC/10-30V

Charging voltage: DC/4.75-5.3V

Output current(Typ): 2.0A

Input & output protection: Input polarity reversal/Output over voltage/Output over current/Output short protection

LED indicator: Power input indicator(Green), Ovp/Ocp/Output short(Red)

Operating temperature: 0°C ~ +40°C

Storage temperature: -20°C ~ +80°C

RoHS compliant: ROHS

Item no: 713148
EAN: 7320287131482
Width: 280 mm
Height: 216 mm
Depth: 52 mm
Volume: 3145 cm³
Weight: 688 g

Accessoiremerk Brodit
Type Tablet
Connection Fixed installation
Pedestal lengte No
Pedestal hoek ° t.b.v. houder No
Pedestal eigenschap No
Houder professional No
Toestel connector No
Toestel houder dikte No
Type No
Toestel houder breedte No
Pedestal kleur No
Toestel houder op- en/of afsluitbaar No
Productinfo Brodit houder
Veiligheid (productinfo) Brodit houder
Productinstallatie Brodit houder
Product geschikt voor info Brodit houder
  • Samsung Galaxy Tab Active Pro

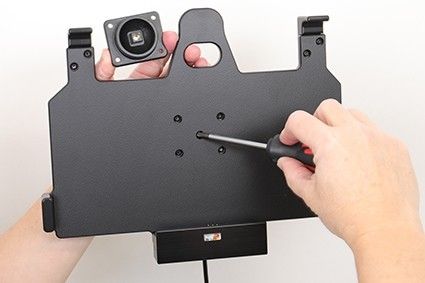

Please read all of the instructions and look at the pictures before attaching the holder. 1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted.
3. To place the device in the holder: Place the lower part of the device in the holder, then flip/press the upper part forwards so it snaps into place in the holder. To remove the device from the holder: Press upwards on the upper part of the holder, in the same time pull the upper part of the device out from the holder and then lift the device up and out from the holder.
4. The holder is in place.
