Brodit fixed installation holder Samsung Active2 USB host

article number
736093
Not in stock
€164.95
-
+
Details
This holder is to be used when you want to secure your Tab Active 2 and still have it easy accessable.

The active holder is to be connected inside the dashboard. It provides a discreet and neat installation without any cables hanging over the interior. Safe and convenient! 12/24 Volt. The product is E-approved. Connect the power cable with a 2 A fuse. 1 A charger. Charging via pogo plug. Professional installation recommended.

Easy-switching system:
The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.

The holder is also perfect for use in stores, at exhibitions and any place where you want to use your Tab Active 2 without having it easy removable. The holder is equipped with a lock. In order to remove the Tab Active from the holder you need the key, two keys are included.  The holder is mounted onto a tilt swivel. This mean that you can adjust the angle in order to avoid light reflection on the screen. You can easily switch between portrait and landscape mode by turning the holder into desired position.

Tablets should not be installed onto a car's dashboard if blocking the view or key controls. ProClip is designed for use with smaller devices like smartphones. If you want to place a tablet onto a dashboard, each combination of tablet-car must be examined in detail by yourself in order to determine if such an installation is possible in the specific case. Brodit will not give any recommendations for such installations. An installation of a tablet onto a vehicle's dashboard is always done on the customer's own responsibility. Brodit recommends using tablets on the car's headrest, installed onto a Brodit headrest mount.
More Information
More Information
Accessory brand Brodit
Barcode 7320287360936
Recommended retail price incl. VAT 164.95
Device holder type Tablet Navigation holder
Connection Fixed installation
Professional holder USB usable when in holder
Device holder features Device specific
Device holder lockable? yes with a lock
Easy switching system Ja
Productinfo Brodit houder
Safety (product info) This Brodit holder offers extra safety, it prevents your device from becoming a projectile or getting under your pedals in the event of a sudden maneuver.
Product installation Mount the holder on a ProClip in your vehicle. A detailed installation manual is included in the product packaging
Product suitable for Brodit houder
productgroup holder/charger Fixed installation
Reviews
Write Your Own Review
You're reviewing:Brodit fixed installation holder Samsung Active2 USB host
Compatibility
Instruction

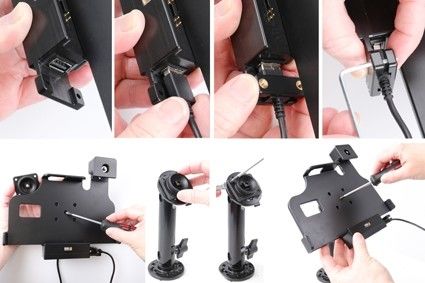

Please read all of the instructions and  look at the pictures before attaching the holder.

1. Connect device via USB Host. Press the cable into the socket, place the cable socket over the pre-drilled holes, screw the cable socket with the enclosed screws. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted.

2. To place the device in the holder: Place the lower part of the device in the holder, then flip/press the upper part forwards so it snaps into place in the holder. Press the lock downward. Press the button to lock.

3. To remove the device from the holder: Use the enclosed key to open the lock. Slide the lock upward. Press upwards on the upper part of the holder, in the same time pull the upper part of the device out from the holder and then lift the device up and out from the holder.

4. The holder is in place.
